技术参数

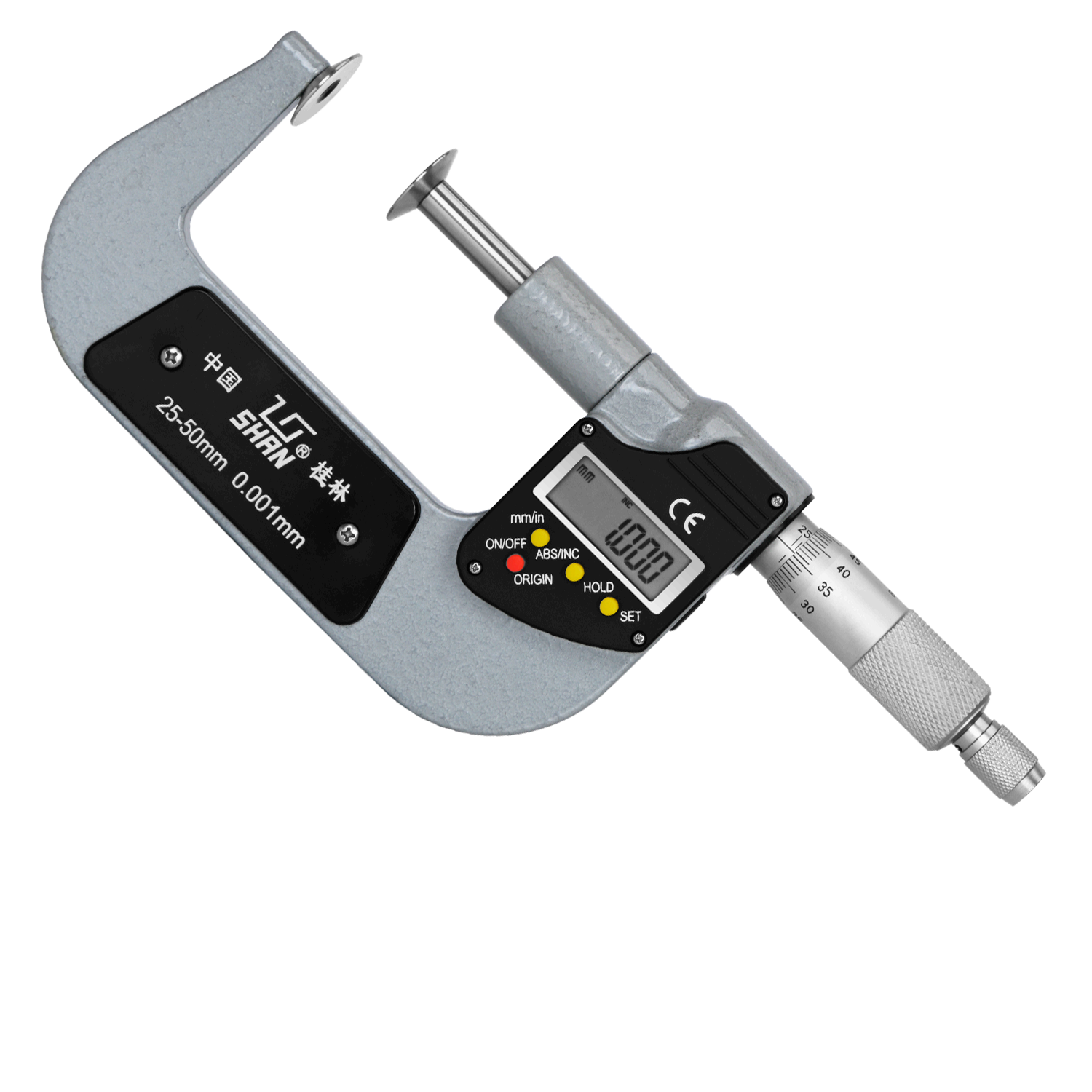

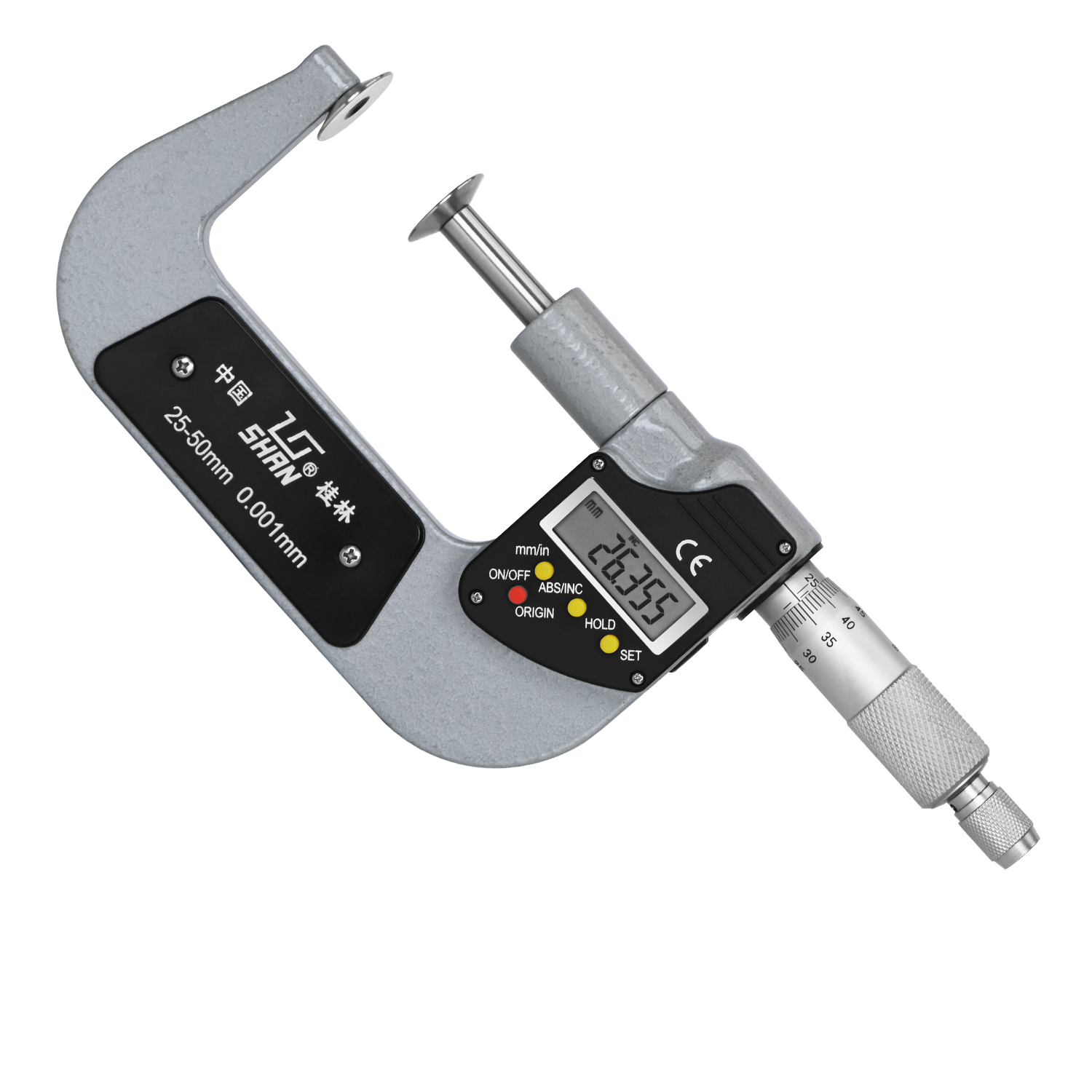

1.⾮旋转⼼轴 Non-rotating spindle.
2.碟型测量⾯，可测量⻮轮公法线及纸张厚度等 With disc measuring faces, easy to abtain the dimensions of gear tooth span.
3.ON/OFF/ORIGIN(开机/关机/返回初始值或屏幕置零) ON/OFF/ORIGIN for switching on or off micrometer, press and hold on this button for displaying starting value.
4.mm/in(公制/英制转换） Metric/Inch system conversion.
5.ABS/INC(绝对测量/相对测量转换) Absolute/Relative measurement conversion.
6.HOLD/SET键（保持/预置值设置） HOLD/SET button for reading holding and presetting.
7.容栅测量系统，带数据传输⼝ Capacity measuring system, with data output interface.
8.喷漆钢制尺架，带隔热护板 Painted steel frame with heat isolate holder.
9.棘轮测⼒机构 Ratchet system for providing measuring force.
10.标准配置：包装盒、电池、说明书、校对棒（25mm以上规格）、扳⼿ Accessories: Packing box, battery, user manual, calibration rod(for range more than 25mm), wrench.
